Carbon steel flanges are essential components in piping systems used to connect pipes, valves, pumps, and other equipment. They provide a secure and leak-proof joint while allowing easy assembly and maintenance of pipelines. A reliable Carbon Steel Flanges Manufacturer supplies high-quality flanges that meet international standards and are widely used in industries such as oil and gas, petrochemical, power generation, and water treatment.
What Are Carbon Steel Flanges?
Carbon steel flanges are circular discs made from carbon steel that are used to connect pipes or other equipment in a piping system. These flanges are typically bolted together with a gasket placed between them to ensure a tight seal. Carbon steel is preferred because of its strength, durability, and cost-effectiveness in industrial applications.

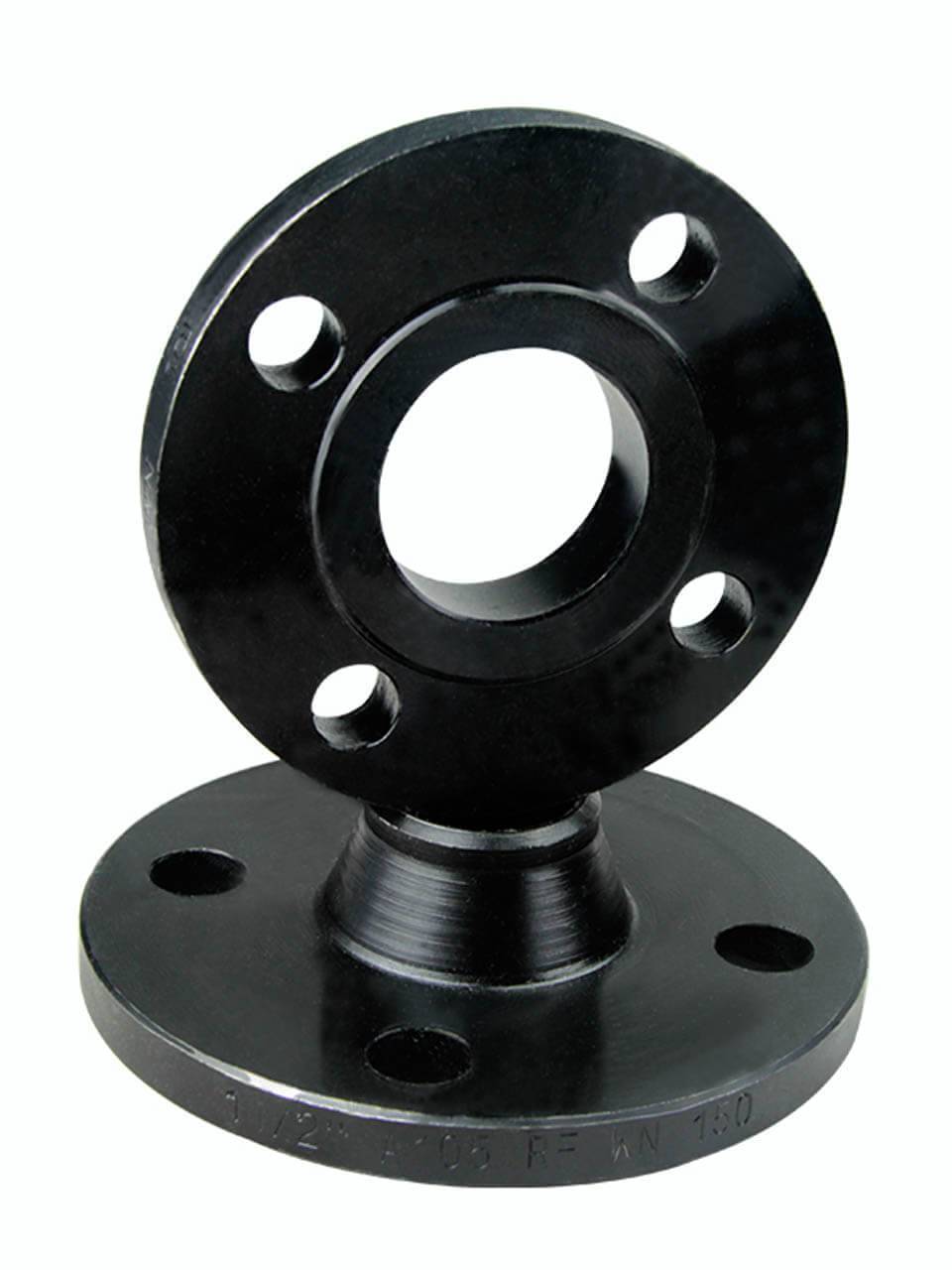

Common Types of Carbon Steel Flanges
1. Weld Neck Flange
Weld neck flanges are designed with a long tapered hub that is welded directly to the pipe. This design provides excellent strength and reduces stress concentration at the base of the flange.
Key Features:
-
High strength and durability
-
Ideal for high-pressure and high-temperature systems
-
Smooth flow transition
Applications:
Used in oil refineries, chemical plants, and power generation systems.
2. Slip-On Flange
Slip-on flanges are slipped over the pipe and then welded both inside and outside to secure them in place. They are easier to install compared to weld neck flanges.
Key Features:
-
Easy installation
-
Cost-effective
-
Suitable for low to moderate pressure applications
Applications:
Commonly used in water pipelines, fire protection systems, and low-pressure fluid lines.
3. Blind Flange
Blind flanges are used to close the end of a piping system or pressure vessel. They do not have a bore and are designed to stop the flow completely.
Key Features:
-
Provides strong sealing
-
Allows easy inspection and maintenance
-
Withstands high pressure
Applications:
Used in pipelines where future expansion or inspection may be required.
4. Socket Weld Flange
Socket weld flanges are designed for small-diameter pipes. The pipe is inserted into a recessed area of the flange and then welded around the joint.
Key Features:
-
Strong and reliable connection
-
Ideal for small pipes
-
Suitable for high-pressure systems
Applications:
Used in hydraulic systems, steam lines, and chemical processing plants.
5. Threaded Flange
Threaded flanges have internal threads that allow them to be screwed onto the pipe without welding. This makes them suitable for systems where welding is not possible.
Key Features:
-
Easy installation and removal
-
No welding required
-
Suitable for low-pressure applications
Applications:
Used in water lines, gas pipelines, and hazardous areas.
6. Lap Joint Flange
Lap joint flanges are used with a stub end and allow the flange to rotate around the pipe. This design helps in easy alignment of bolt holes.
Key Features:
-
Easy alignment and installation
-
Ideal for systems requiring frequent dismantling
-
Suitable for low-pressure applications
Applications:
Commonly used in systems where regular inspection or maintenance is required.
Benefits of Carbon Steel Flanges
Carbon steel flanges offer several advantages for industrial piping systems:
-
High strength and durability
-
Good resistance to pressure and temperature
-
Cost-effective compared to alloy materials
-
Easy installation and maintenance
-
Wide availability in various sizes and standards
Standards and Specifications
Carbon steel flanges are manufactured according to international standards such as:
-
ASTM A105 – Carbon steel flanges for high-temperature service
-
ASTM A350 – Flanges for low-temperature service
-
ASME B16.5 – Pipe flanges and flanged fittings
-
ASME B16.47 – Large diameter steel flanges
These standards ensure quality, safety, and dimensional accuracy.
Conclusion
Carbon steel flanges play a crucial role in connecting and securing piping systems in many industries. From weld neck and slip-on flanges to blind and threaded designs, each type serves a specific purpose depending on the application and pressure requirements. Choosing the right type of flange from a trusted carbon steel flanges manufacturer ensures reliable performance, safety, and long service life in industrial operations.
