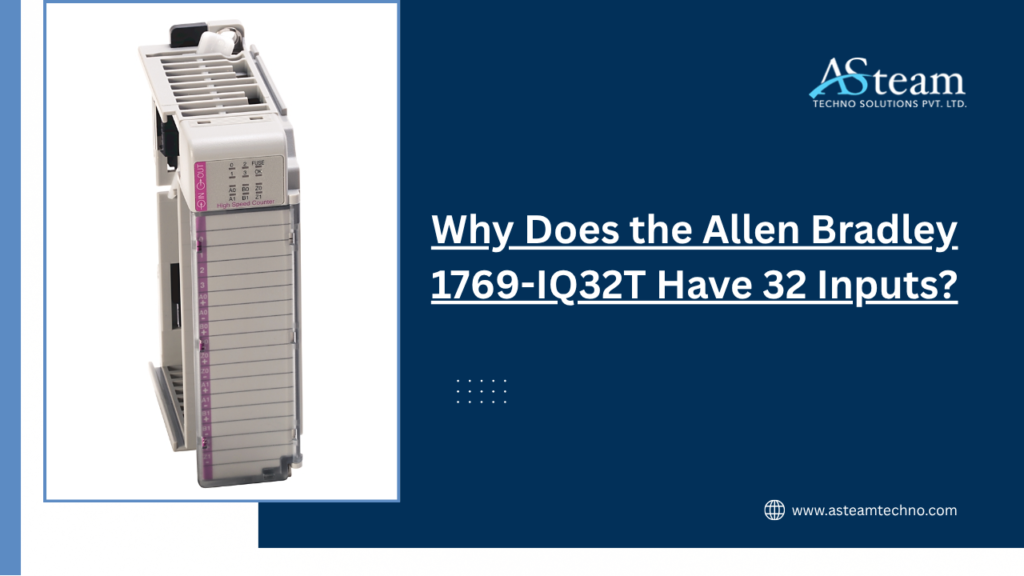

Why Does the Allen Bradley 1769-IQ32T Have 32 Inputs?
Industrial automation systems often need to monitor numerous sensors, switches, push buttons, proximity sensors, and other field devices at the same time. Using a PLC input module with enough channels can simplify system design, reduce panel space, and make I/O expansion more practical. This is where the Allen Bradley 1769-IQ32T becomes useful.
The 1769-IQ32T is a CompactLogix 32-point, 24V DC digital input module designed to receive signals from field devices. Rockwell Automation specifies 32 input channels, with the inputs arranged into four groups of eight points. It supports both sinking and sourcing configurations and operates within a 20.4 to 26.4V DC input range.
But why does the module have exactly 32 inputs? The answer comes down to I/O density, machine architecture, wiring organization, and the practical requirements of industrial control systems.
What Is the Allen-Bradley 1769-IQ32T?
The Allen-Bradley 1769-IQ32T is a 24V DC digital input module for CompactLogix-based control systems. Its primary function is to receive discrete ON/OFF signals from field devices and make those signal states available to the controller.
The module provides 32 terminated inputs and is divided into four isolated groups, with eight input points per group. This organization allows multiple field devices to be connected while keeping the wiring structure manageable.
The module is also designed for both sinking and sourcing input configurations. This gives engineers greater flexibility when connecting different types of 24V DC field devices.
Why Does the 1769-IQ32T Have 32 Inputs?
1. To Connect More Field Devices
One of the biggest reasons for providing 32 inputs is simple: modern machines can have many discrete signals.
A single automated machine may include:
- Proximity sensors
- Photoelectric sensors
- Limit switches
- Push buttons
- Selector switches
- Safety-related status signals
- Motor auxiliary contacts
- Valve position sensors
- Level switches
- Equipment status signals
If a machine requires 25 or 30 discrete input signals, an 8- or 16-point module may not provide sufficient capacity. A 32-point module can accommodate these requirements with fewer individual I/O modules.
This can make the control panel more compact and reduce the number of module connections required.
2. Higher I/O Density Saves Panel Space
Panel space is valuable in industrial automation. Adding several low-density modules can increase the physical size of a control cabinet.
The 1769-IQ32T provides 32 inputs in a single-wide Compact I/O module. Rockwell Automation lists the module dimensions at approximately 118 × 35 × 87 mm, excluding the mounting-tab height.
Therefore, engineers can obtain a relatively high number of digital input channels without dedicating excessive cabinet space to I/O hardware.
3. It Matches Common Machine-Control Requirements
Many automation applications require dozens of discrete signals. Consider a conveyor system.
Inputs might be required for:
- Product detection sensor
- Entry sensor
- Exit sensor
- Motor feedback
- Emergency-stop status
- Guard-door status
- Jam detection
- Cylinder position
- Start push button
- Stop push button
A larger machine can quickly require several times that number.
With 32 inputs available, the 1769-IQ32T provides enough capacity for many medium-sized automation applications while leaving some channels available for future expansion.
4. Four Groups of Eight Improve Wiring Organization
The 32 inputs are not simply presented as one large group. The module divides them into four groups of eight inputs: inputs 0–7, 8–15, 16–23, and 24–31.
This grouping helps organize field wiring and provides isolated input groups. Each group can operate in either sinking or sourcing configurations.
For engineers, this structure can make it easier to separate different machine sections or groups of sensors while maintaining a clear wiring arrangement.
5. It Supports Flexible 24V DC Input Applications
The 1769-IQ32T is designed for 24V DC sink/source inputs. Its specified operating range is 20.4 to 26.4V DC at 60°C.
24V DC is widely used for industrial control signals because it works well with common sensors, switches, and other discrete field devices.
The 1769-IQ32T therefore provides a relatively high-density solution for machines that generate many 24V DC ON/OFF signals.
Does Having 32 Inputs Improve Automation Performance?
The number of inputs itself does not automatically make a machine faster. Instead, the advantage is the ability to monitor more discrete devices through one module.
The module also provides configurable digital filtering, with selectable off-to-on and on-to-off filter values ranging from 0 to 8 ms. Typical input delays are specified at 0.1 ms for off-to-on and 0.25 ms for on-to-off, with higher maximum values specified by Rockwell Automation.
These characteristics can help the controller reliably interpret signals from industrial field devices while allowing engineers to configure filtering according to application requirements.
Where Can the 1769-IQ32T Be Used?
The 1769-IQ32T can be suitable for automation systems where many discrete 24V DC signals must be monitored.
Potential applications include:
- Conveyor and material-handling systems
- Packaging machines
- Manufacturing equipment
- Assembly lines
- Process machinery
- Machine-control panels
- Automated production systems
- Equipment monitoring systems
For example, an automated packaging machine could use multiple inputs to monitor product presence, actuator positions, access doors, machine status, and operator controls. Instead of distributing these signals across numerous smaller modules, a 32-point input module can consolidate many of them into one I/O location.
Final Thoughts
The Allen-Bradley 1769-IQ32T has 32 inputs because industrial machines often need to monitor a large number of discrete field signals. Its 32-channel design provides high I/O density while maintaining organized wiring through four groups of eight inputs.
Its 24V DC sink/source capability, configurable input filtering, isolated groups, and compact form factor make it a practical choice for many CompactLogix automation systems.
In short, the 32-input design is about more than simply increasing the channel count. It gives automation engineers a way to connect numerous field devices, conserve panel space, simplify I/O architecture, and maintain flexibility for machines with many discrete control signals.
FAQs
1. What is the Allen-Bradley 1769-IQ32T used for?
The 1769-IQ32T is used to receive 24V DC discrete signals from field devices and communicate their ON/OFF states to a CompactLogix control system.
2. How many inputs does the 1769-IQ32T have?
The Allen-Bradley 1769-IQ32T has 32 digital input channels. The inputs are arranged into four groups of eight points.
3. Is the 1769-IQ32T a sinking or sourcing input module?
It supports both sinking and sourcing 24V DC input configurations, giving engineers flexibility when connecting compatible field devices.
4. What voltage does the 1769-IQ32T use?
The module is categorized as a 24V DC input module, with an operating voltage range of 20.4 to 26.4V DC at 60°C.
5. Why choose a 32-point input module instead of a smaller module?
A 32-point module can accommodate more field devices in a single module, helping reduce the number of I/O modules required and making efficient use of control-panel space.
